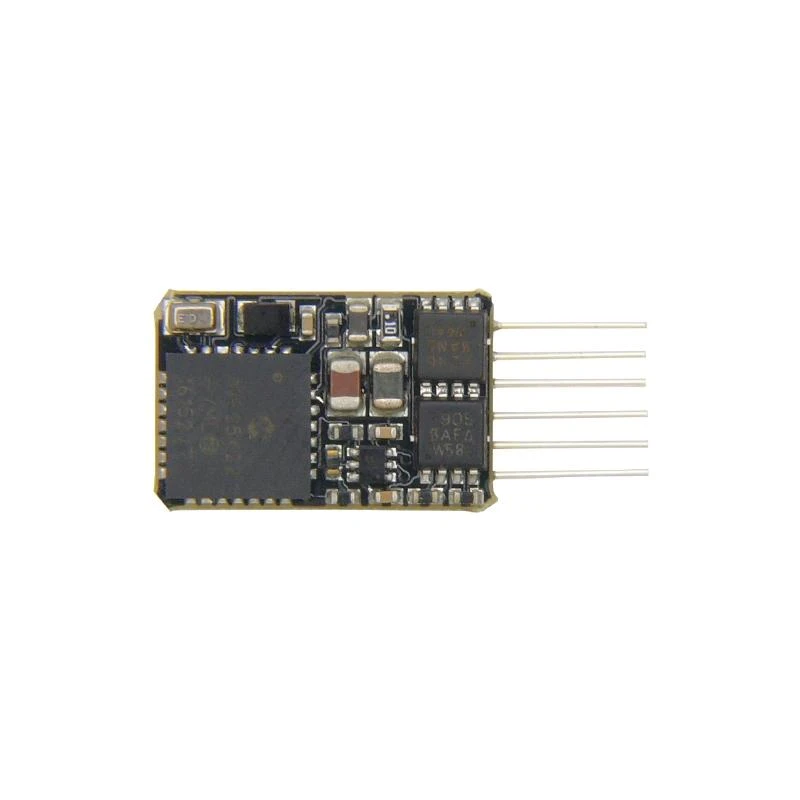

BACHMANN 6 Pin DCC Loco-Decoder With Back EMF Featuring Railcom

BACHMANN 6 PIN DCC LOCO-DECODER WITH BACK EMF FEATURING RAILCOM

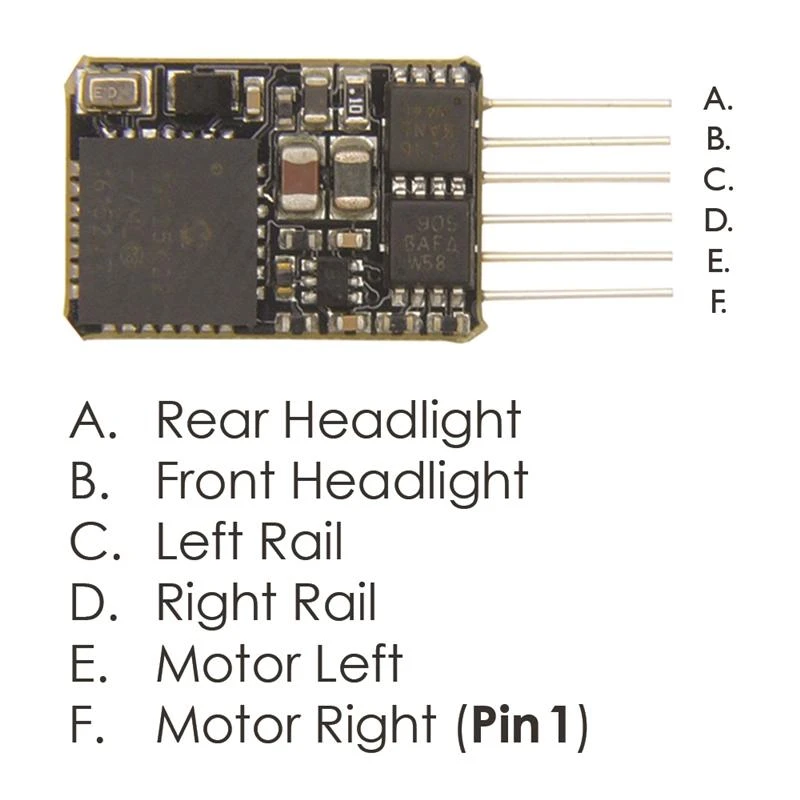

A 6 Pin (NEM651) DCC Decoder suitable for models fitted with a 6 Pin DCC decoder socket (do not use with the Graham Farish 3F ‘Jinty’ and Class 64XX Pannier Tank – use 36-556RA with these models).

Highlights include:

Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin) with Back EMF function

4 powered function outputs (+2 logic level/SUSI outputs)

0.8A continuous load

Suitable for models equipped with DC motors (including coreless motors)

Brake Button function for realistic control of braking (operates on F2)

Operating Modes

Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin) with Back EMF function

14, 28 and 128 speed steps

Short and Long addresses

Motor Control Features

Suitable for models equipped with DC motors (including coreless motors)

0.8A continuous load

Variable pulse width frequency motor regulation (up to 40kHz)

Motor output overload protection; Back EMF (de-selectable)

Function Outputs

4 powered-function outputs with overload protection (2 outputs connect via solder pads)

500mA load per output

500mA total load of all function outputs

2 additional logic level or SUSI outputs

Shunting speed and momentum key selectable

Dimensions

14mm x 9mm x 2.5mm

Default Address

Address 3

Programming

DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

RailCom® Feedback system

Upgradable firmware
